7003, 7005, 7006 Radial Load Single Row Angular Contact Ball Bearing With One Outer Ring

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Various standard are availa...

7003, 7005, 7006 Radial Load Single Row Angular Contact Ball Bearing With O

7003, 7005, 7006 Radial Load Single Row Angular Contact Ball Bearing With One Outer Ring

Model	Size			15º		25º		Cage Material
	Size			Limit Speed		Limit Speed
	ID	OD	H	Rated load amount		Rated load amount
	ID	OD	H	Cr Cor	Grease Oil	Cr Cor	Grease Oil
7003	17	35	10	6.7 4.9	44000 66000	6.4 4.7	39000 59000	Bakelite
7004	20	42	12	9.6 6.3	37000 55000	9.2 6.0	33000 49000	Bakelite
7005	25	47	12	12.9 8.7	33000 49000	12.3 8.3	29000 44000	Bakelite
7006	30	55	13	15.7 11.6	27000 42000	14.9 10.9	23000 37000	Bakelite

Specifications:

1) Model: Open, Z, ZZ, RZ, 2RZ, RS, 2RS

2) Quality level: reach the same level as the Japanese and European bearings

3) Tolerance level: ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5)

4) Noise Level: EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4

5) Application: home appliances, low noise and high speed electric motors; automotive components, pumps, machinery.

Feature of Angular contact ball bearings:

When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.

Applications:

These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.

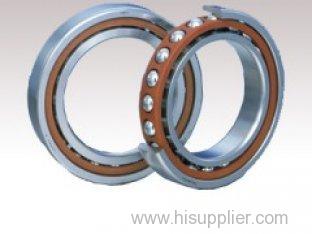

Photos of Angular contact ball bearings:
